Surgeon-designed cutting guides for mandibular resection and reconstruction. Precision osteotomy planning with 3D-printed surgical templates.

Mandibular Resection & Reconstruction

This case demonstrates a mandibular body resection with immediate reconstruction using a 3D-printed cutting guide. The guide was designed to achieve precise osteotomy margins based on CBCT data, ensuring accurate tumor removal while preserving vital structures.

The surgical workflow includes preoperative marking, guide-assisted piezoelectric osteotomy, defect management, and reconstruction plate fixation — all guided by custom-designed 3D-printed templates.

Mandibular Body Resection Guide Reconstruction Plate
Preoperative surgical marking on mandible
Step 01
Preoperative Marking

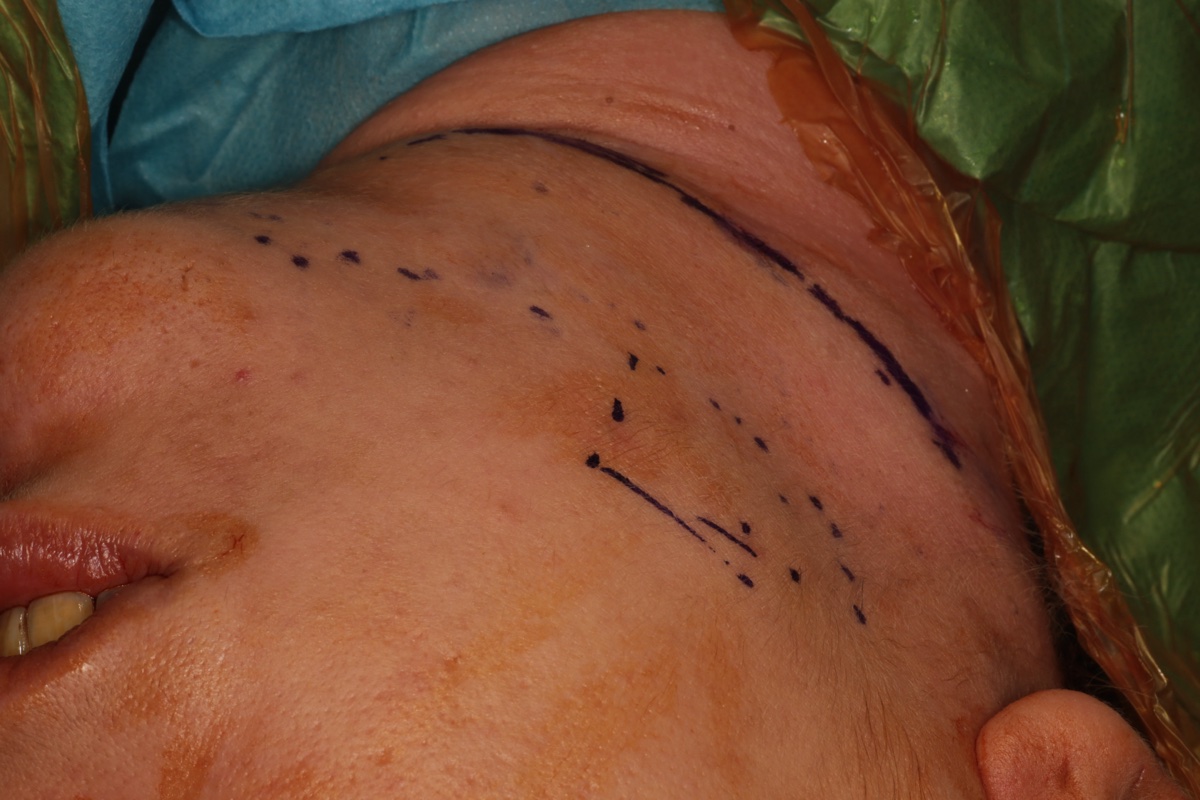

Osteotomy lines marked on the skin surface based on CBCT-planned resection margins.
3D-printed cutting guide components ready for sterilization
Step 02
3D-Printed Cutting Guide

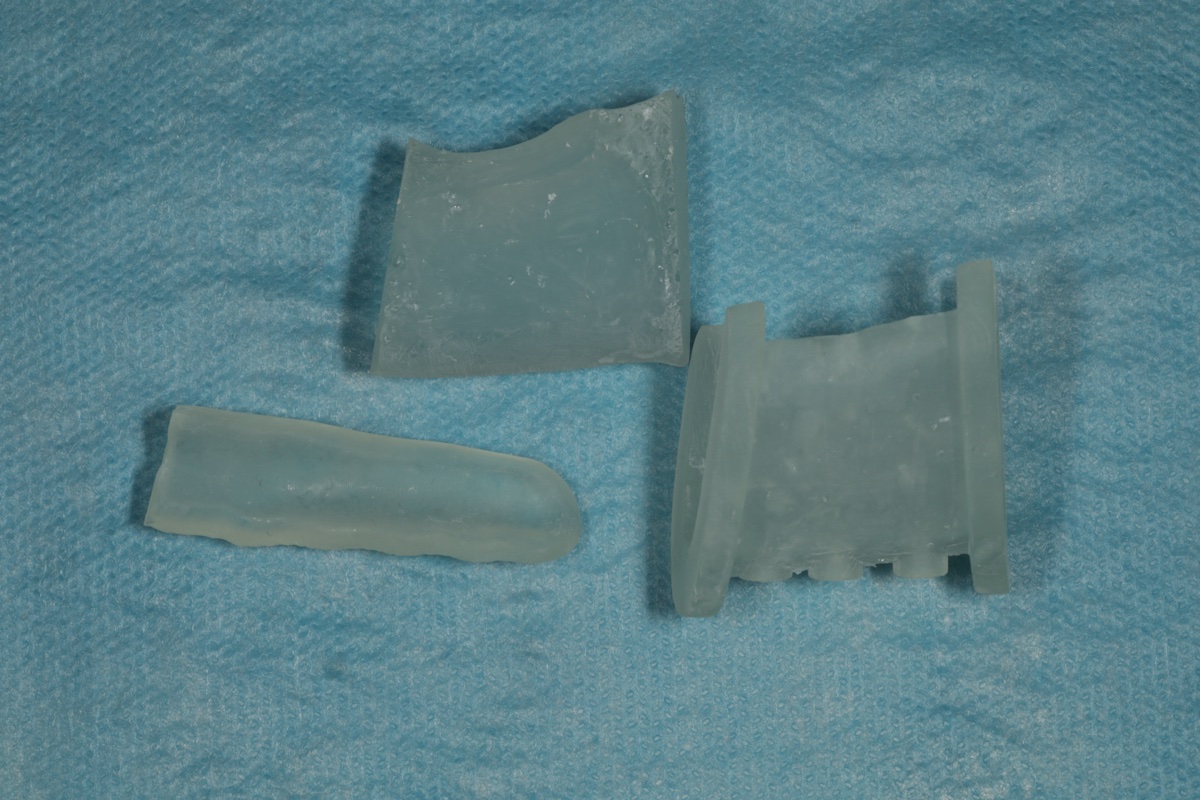

Custom-designed and 3D-printed surgical cutting guide components ready for sterilization.
Mandibular body exposed through submandibular approach
Step 03
Surgical Exposure

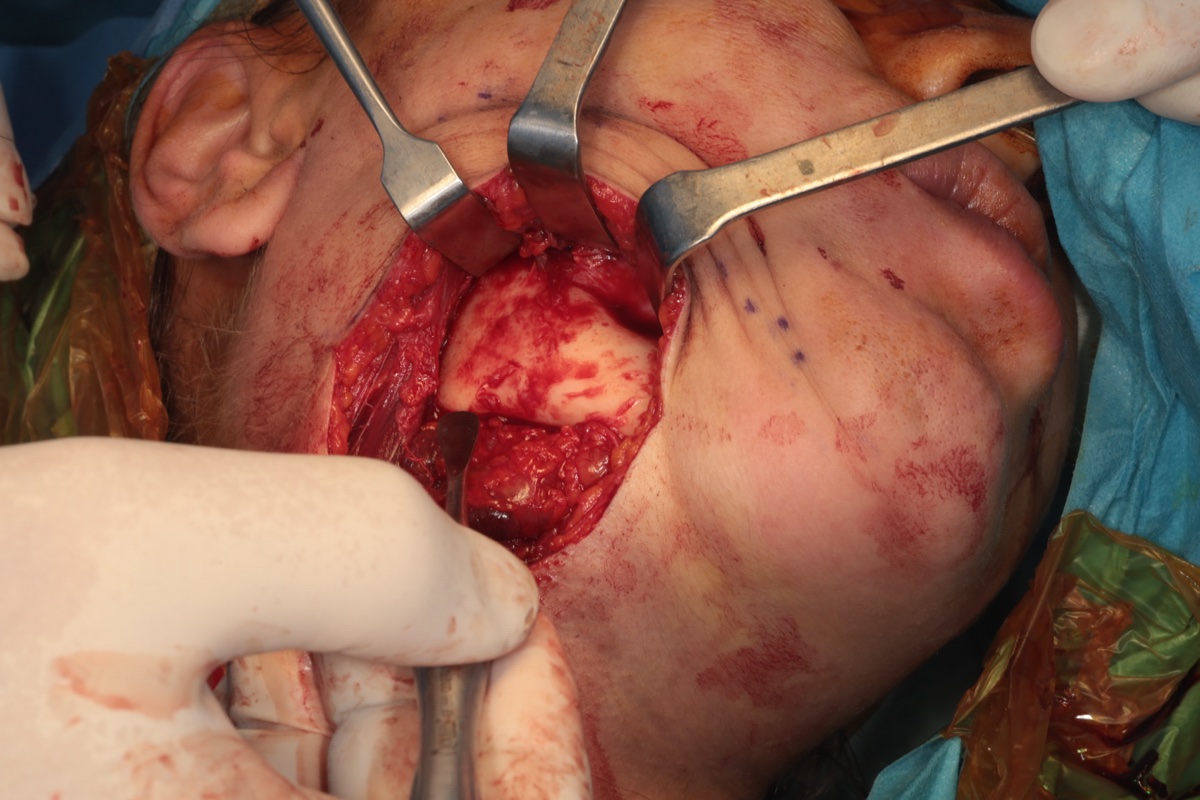

Mandibular body exposed through submandibular approach, revealing the pathological lesion.
Intraoperative assessment of mandibular lesion
Step 04
Lesion Assessment

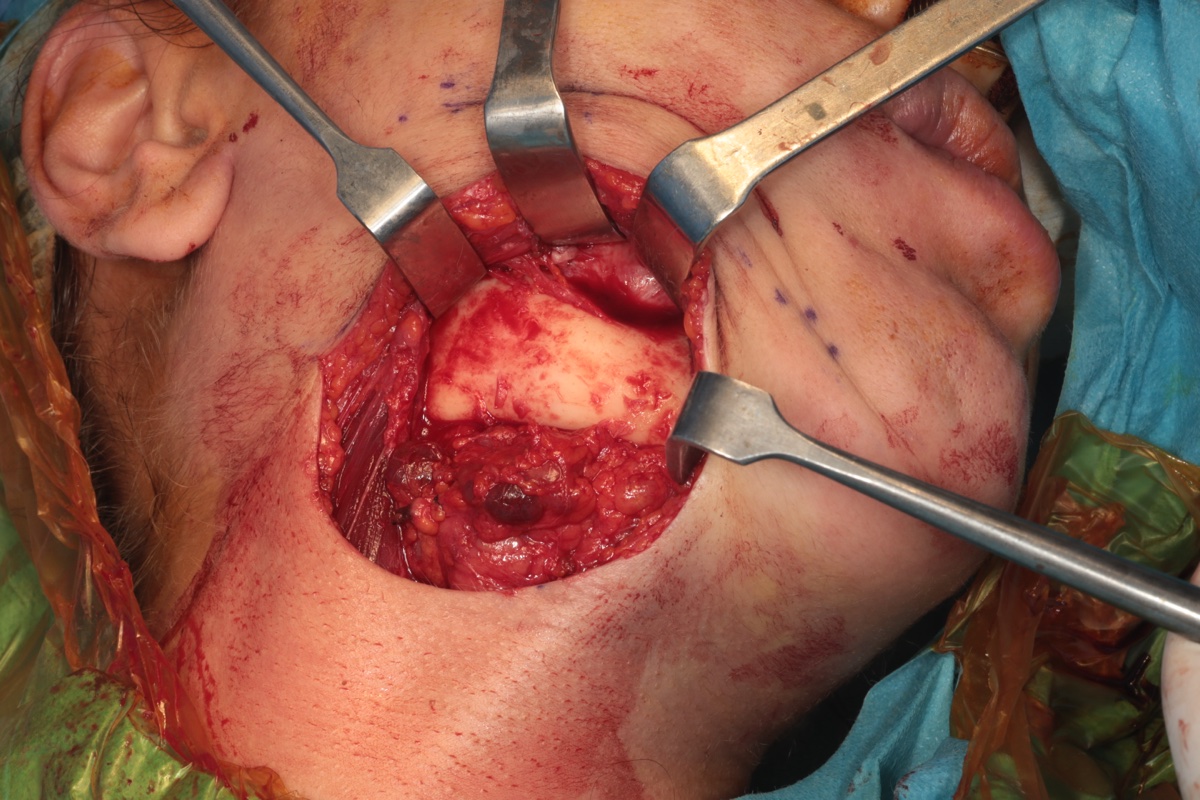

Intraoperative assessment of the mandibular lesion with retractors in place for optimal visualization.
3D-printed cutting guide positioned on mandible
Step 05
Guide Placement

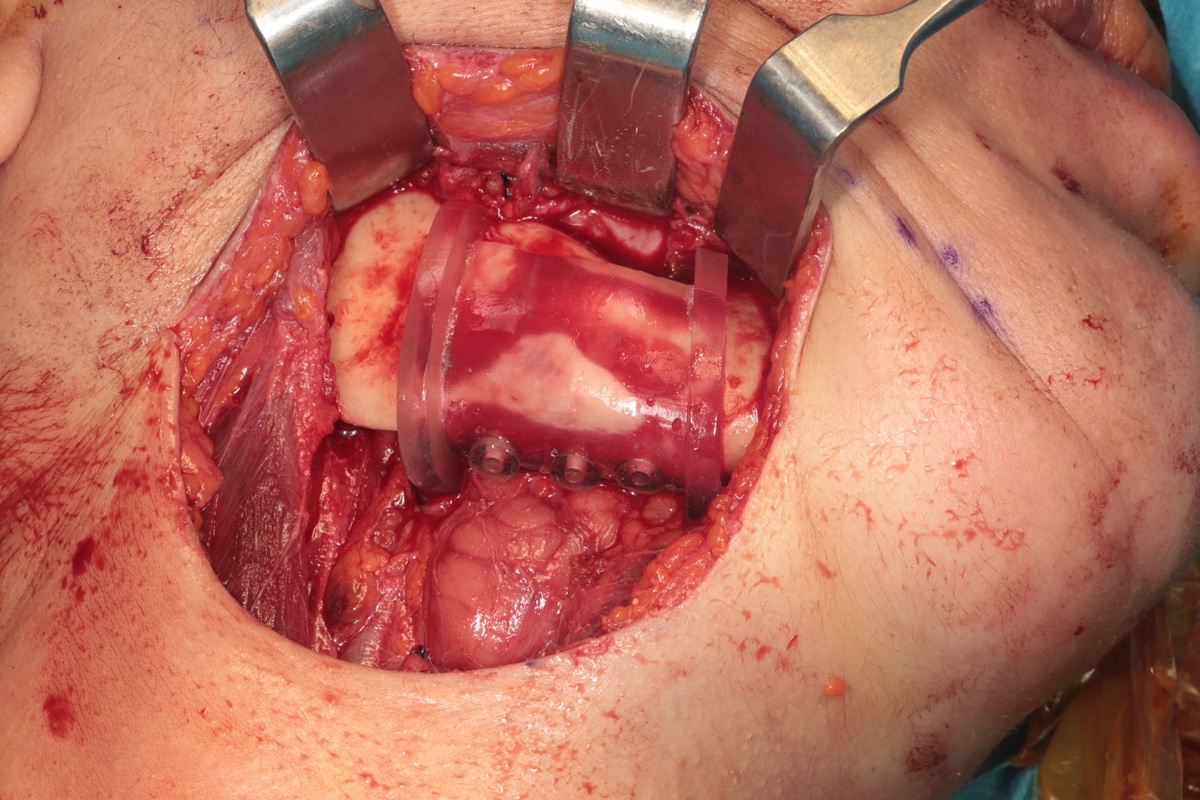

3D-printed cutting guide positioned on the mandible for precise osteotomy guidance.
Piezoelectric osteotomy through cutting guide slots
Step 06
Piezoelectric Osteotomy

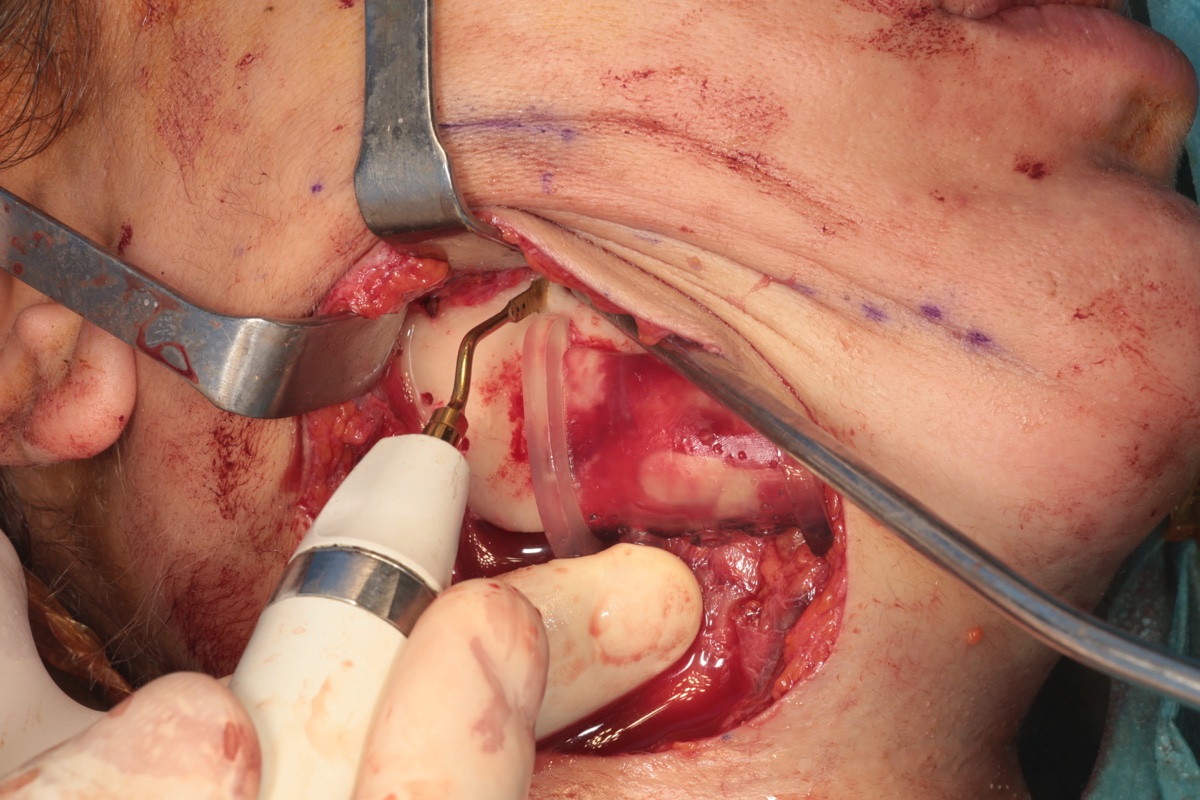

Bone cutting performed with piezoelectric instrument through the cutting guide slots for maximum precision.
Post-resection mandibular defect with iliac crest bone graft
Step 07
Defect & Bone Graft

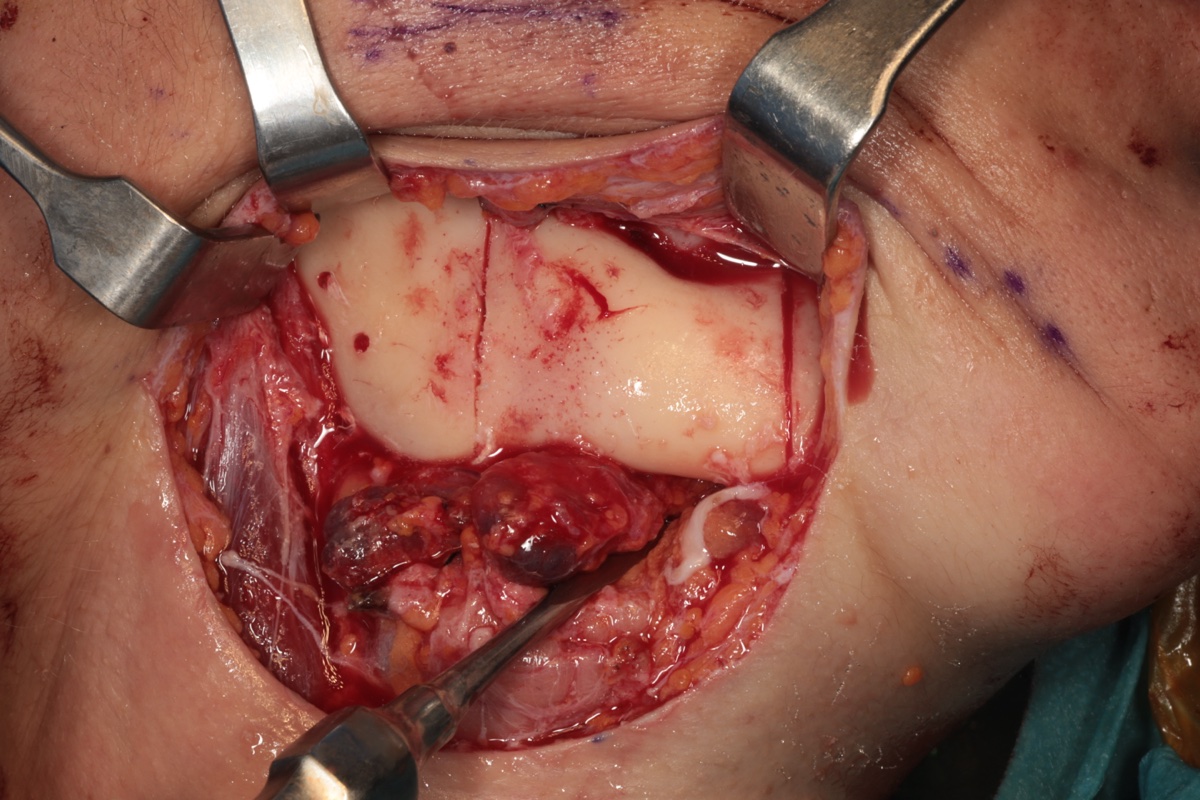

Post-resection mandibular defect with iliac crest bone graft prepared for reconstruction.
Osteotomy line with reconstruction plate adapted and secured
Step 08
Osteotomy & Plate Fixation

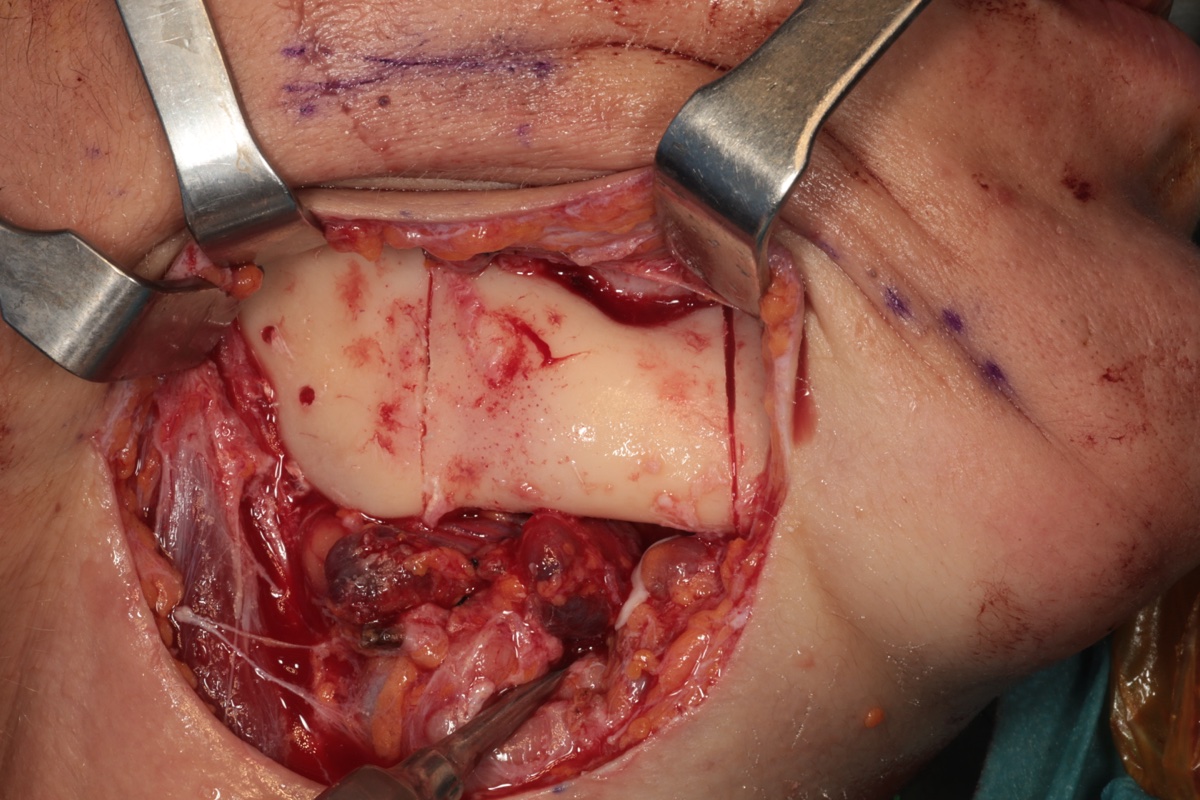

Osteotomy line visible with initial reconstruction plate adapted and secured.
Cutting guide alongside resected mandibular bone specimen
Step 09
Resected Specimen

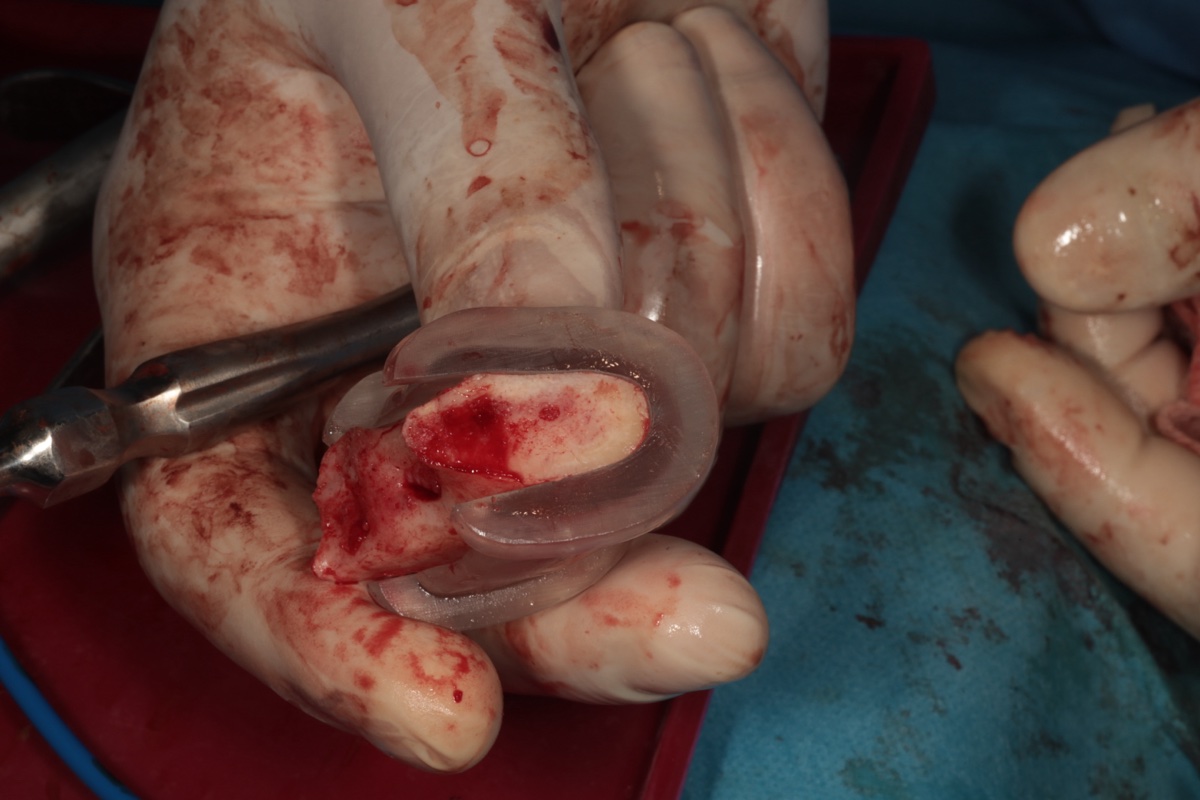

Cutting guide used intraoperatively alongside the resected mandibular bone specimen.
Titanium reconstruction plate fixed across mandibular defect
Step 10
Reconstruction Plate

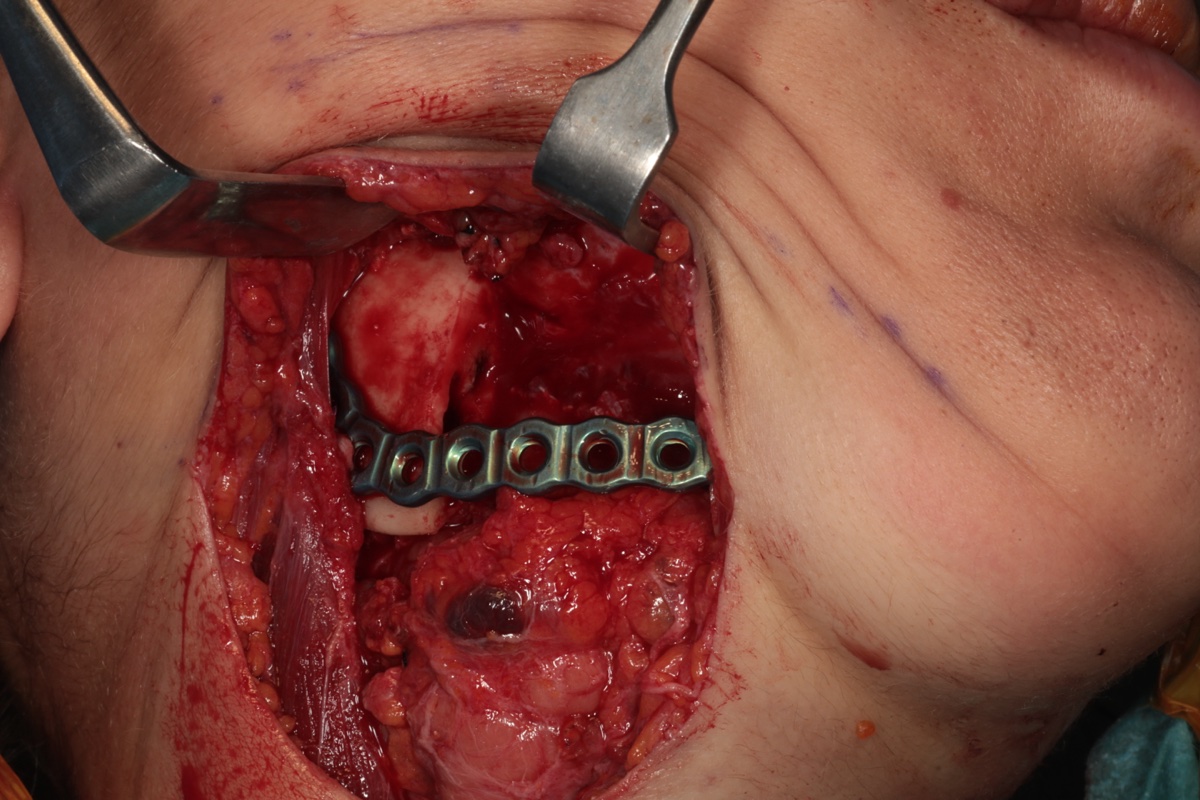

Titanium reconstruction plate fixed across the mandibular defect with bicortical screws.
Dual titanium plate system for load-bearing stability
Step 11
Dual Plate System

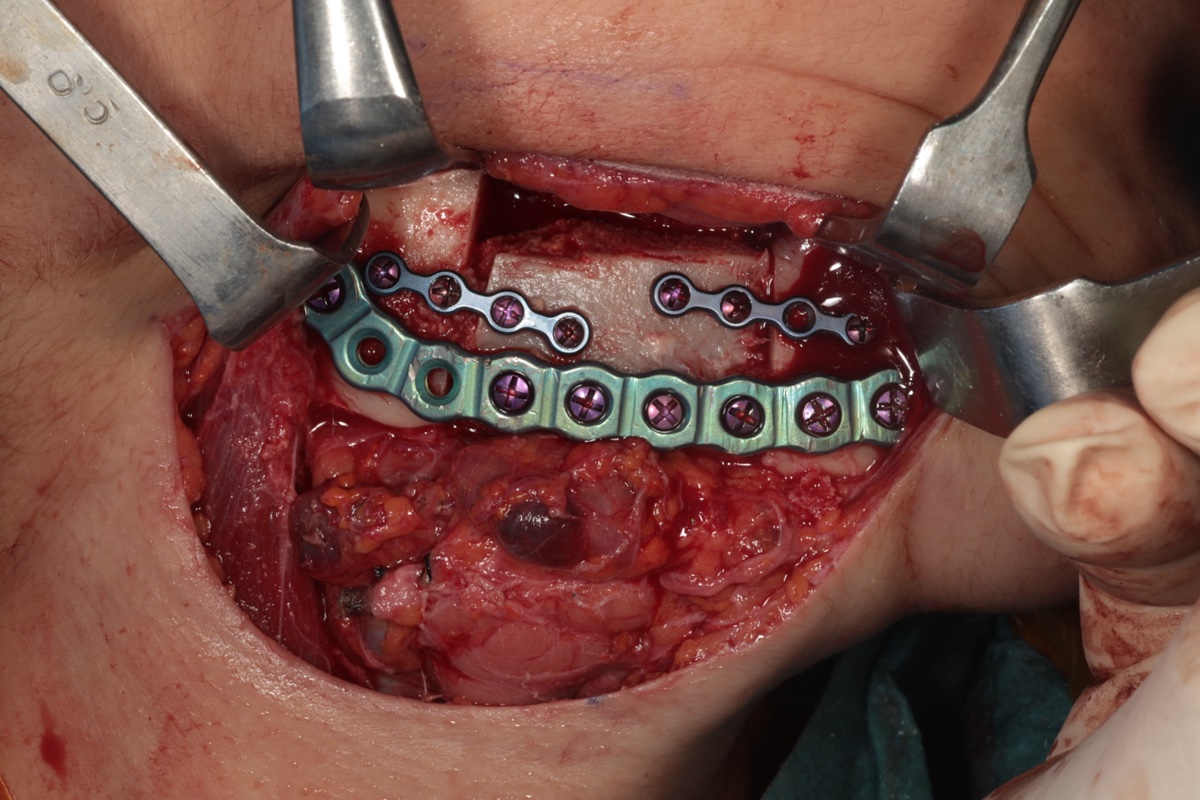

Final reconstruction with dual titanium plate system providing load-bearing stability.
Primary wound closure with interrupted sutures
Step 12
Wound Closure

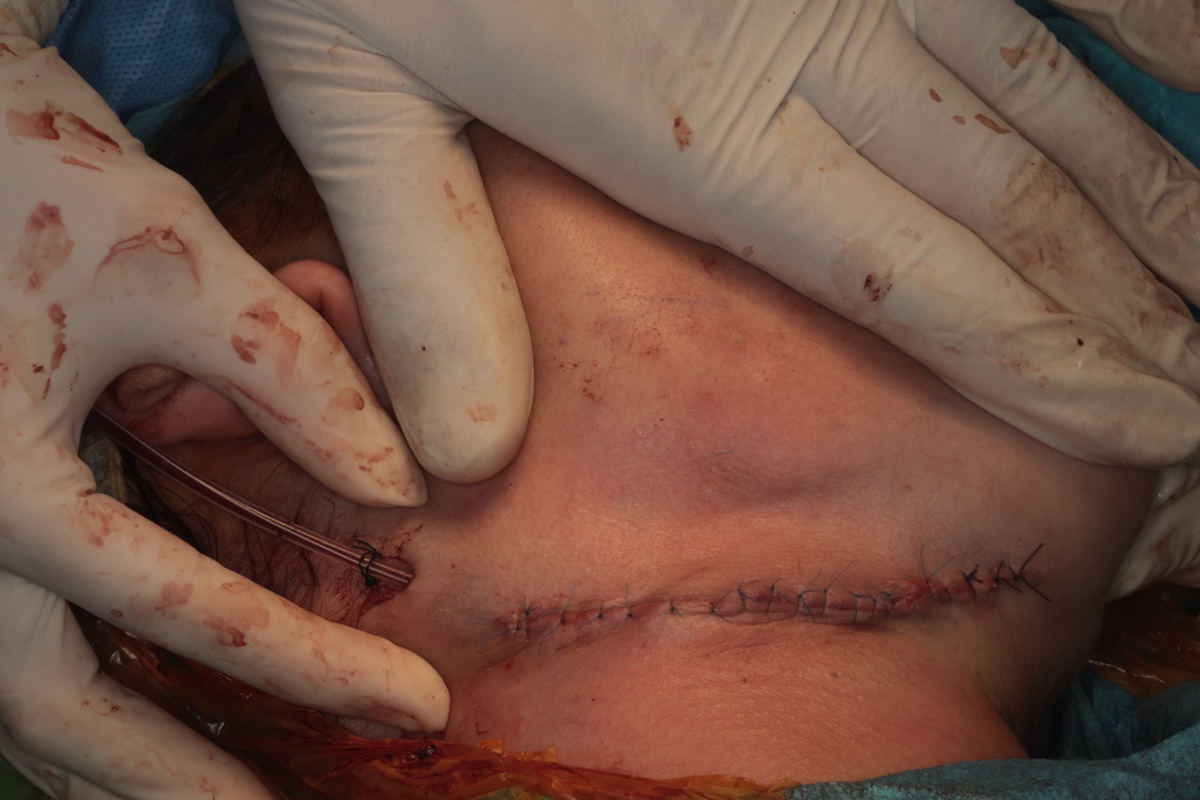

Primary wound closure with interrupted sutures. Surgical procedure completed successfully.
